What industrial painting and coating work involves
Industrial painting protects assets more than it decorates them. Structural steel, pipe racks, tanks, process equipment, concrete floors and walls in plants and warehouses all face some mix of abrasion, moisture, chemicals and sunlight. The work is defined by three things on a specification: how the surface is prepared, which coating system goes on, and what thickness each coat must reach.
- Structural steel, columns, trusses and mezzanines
- Pipe racks, piping and equipment supports
- Exterior tanks and silos
- Plant interiors, process areas and washdown zones
- Safety color coding and marking
Surface preparation standards that set the result
Steel preparation is specified with SSPC designations (SSPC is now part of AMPP). Each number describes how clean the steel must be before coating. Higher levels remove more rust, mill scale and old coating, and give the primer more to grip. The coating manufacturer's data sheet states the minimum preparation a product needs; using a lower level than the product requires is the most common way an industrial coating fails early.
| Standard | Name | What it means in practice |
|---|---|---|
| SSPC-SP 1 | Solvent cleaning | Removes oil, grease and contaminants. Done before any other method. |
| SSPC-SP 2 | Hand tool cleaning | Wire brush and scraper remove loose rust and paint; tight material stays. |
| SSPC-SP 3 | Power tool cleaning | Power wire brushes and grinders remove loose material; tight material stays. |
| SSPC-SP 11 | Power tool cleaning to bare metal | Bare metal with a surface profile, for where blasting is not possible. |
| SSPC-SP 7 / NACE No. 4 | Brush-off blast | Light blast that removes loose material and roughens tight coatings. |
| SSPC-SP 6 / NACE No. 3 | Commercial blast | Removes most rust and mill scale; limited staining allowed. |
| SSPC-SP 10 / NACE No. 2 | Near-white blast | Nearly all staining removed; common for high-performance systems. |
| SSPC-SP 5 / NACE No. 1 | White metal blast | All visible contaminants removed; for the most severe exposures. |

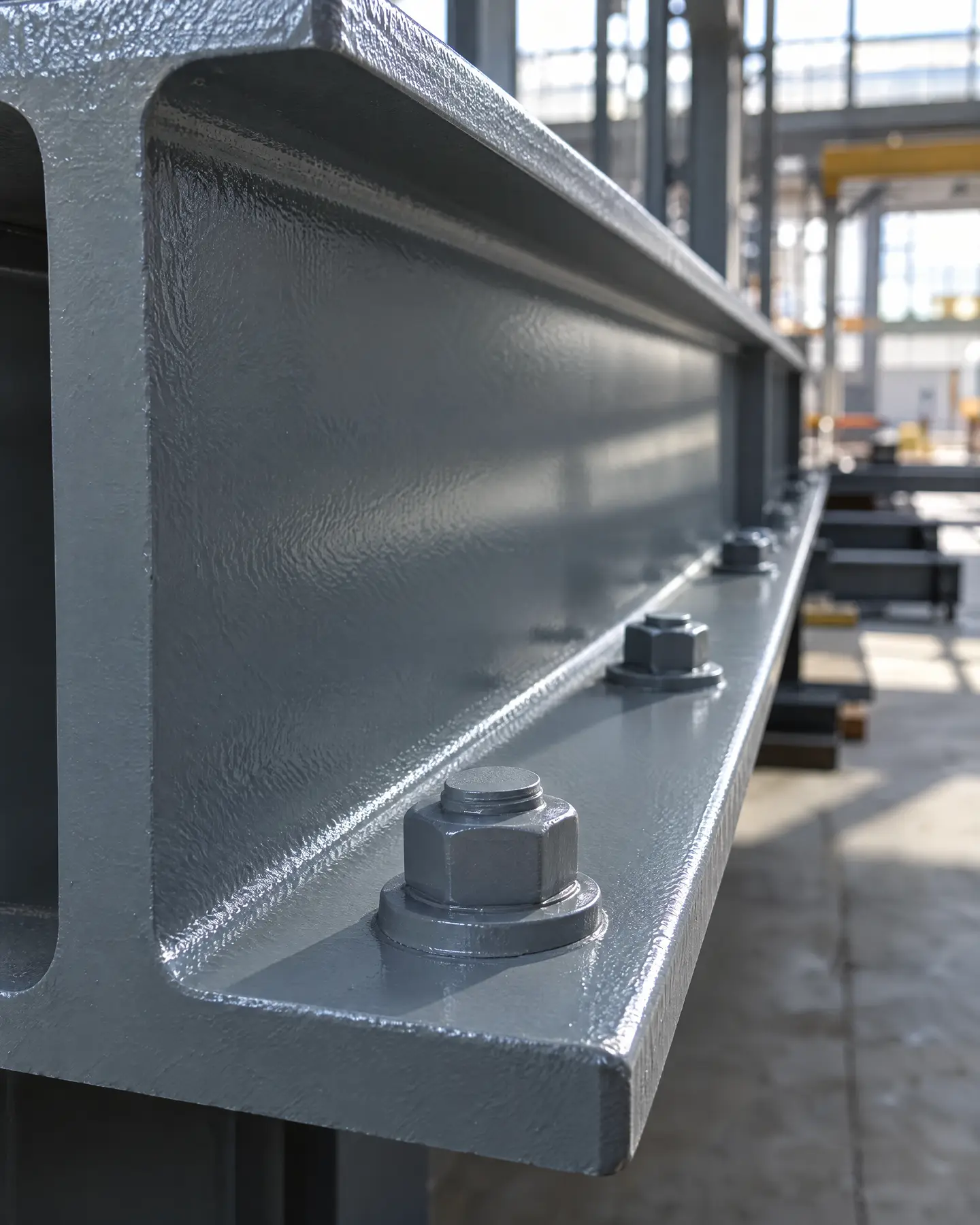

Industrial coating systems and where they fit
Industrial coatings are applied as systems: a primer for adhesion and corrosion protection, often an intermediate coat for barrier and build, and a topcoat for the exposure the surface sees every day. Families behave differently, and the right one depends on where the coating lives.
| Family | Strengths | Watch for |
|---|---|---|
| Epoxy | Adhesion, chemical and abrasion resistance | Chalks and fades in sunlight; usually topcoated outdoors |
| Aliphatic polyurethane | Color and gloss retention under UV | Typically a topcoat over epoxy, not a standalone primer |
| Zinc-rich primer | Galvanic corrosion protection on blasted steel | Needs a high level of preparation to perform |
| Direct-to-metal acrylic | Simpler application and recoat for lighter duty | Lower chemical and abrasion resistance |
| Alkyd | Familiar, forgiving on minimally prepared steel | Slower cure, lower performance than modern systems |
The messy middle: old coatings on old steel
Unknown existing coatings also raise compatibility questions. Strong solvents in a new coating can lift or wrinkle an old one. A test patch with an adhesion check (ASTM D3359 tape test or ASTM D4541 pull-off) shows whether overcoating is viable before the full scope is committed.
Choosing an industrial coating approach
- IfSteel is outdoors in direct sun
- ThenEpoxy or zinc primer with a polyurethane topcoat for UV stability
- IfSurfaces see chemicals or immersion
- ThenSelect products from the manufacturer's chemical resistance data for that exposure
- IfBlasting is not possible
- ThenPower tool cleaning (SSPC-SP 3 or SP 11) with a surface-tolerant primer
- IfThe facility cannot shut down
- ThenPhased work areas, containment and products with cure times that fit the production schedule
- IfThe existing coating is unknown
- ThenTest for hazardous content and run an adhesion test patch before committing
Testing and documentation on industrial projects
- Ambient conditions logged: air and surface temperature, relative humidity and dew point
- Surface preparation verified against the specified SSPC standard before coating
- Wet film checks during application and dry film readings per SSPC-PA 2
- Adhesion testing where the specification calls for it
- Products, batch numbers and areas recorded for future maintenance
Industrial work often sits alongside exterior painting on the same site, and most of it depends on the substrate work described in surface preparation and specialty coatings. Plant and warehouse settings are covered under industries.
